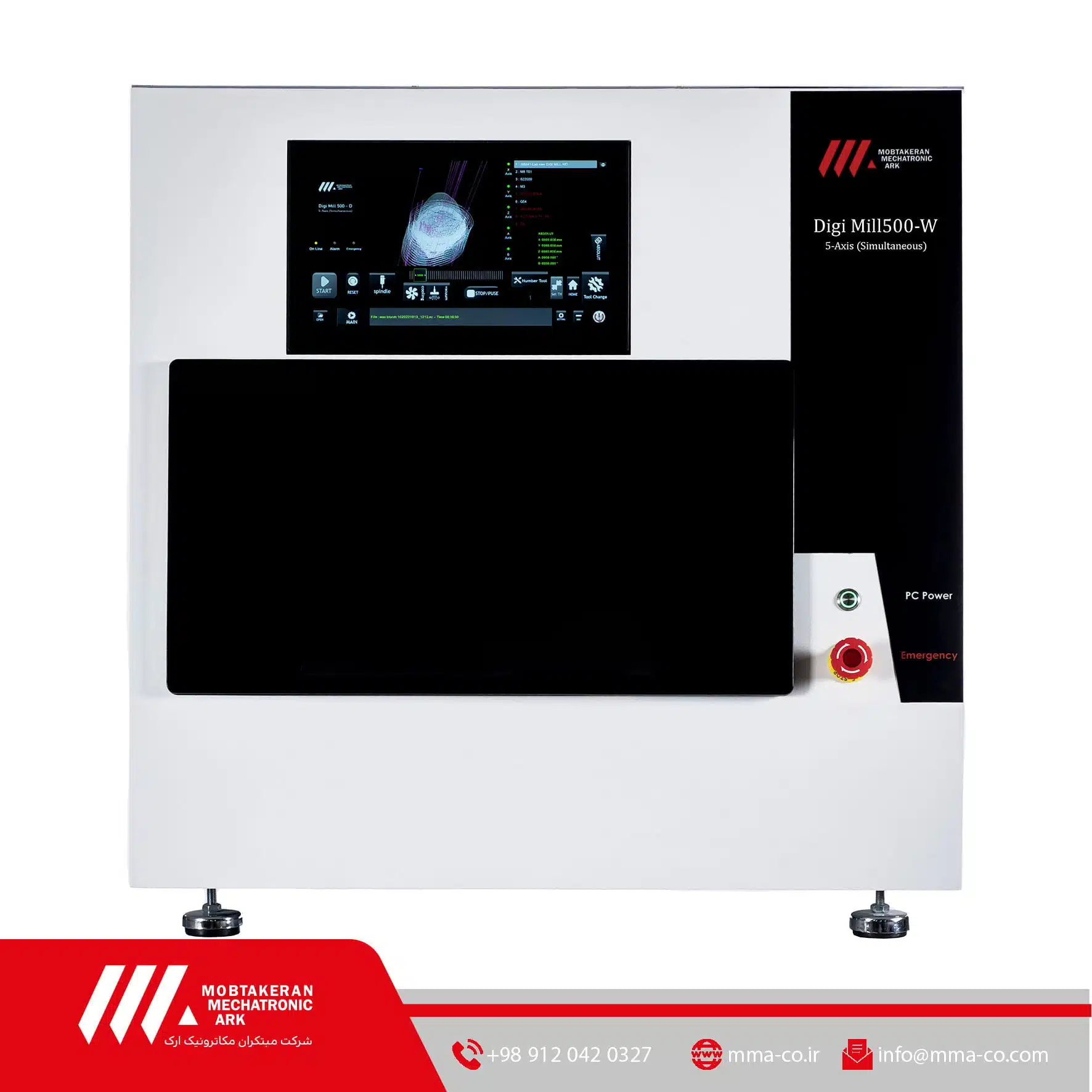

The simultaneous five-axis CNC machine has been designed and produced as one of the main components of CAD/CAM systems by MMA Co., Ltd.
Strengths of this device:
- Servo motor system is used in this device, which are coupled to the axles by harmonic gearboxes. This designed system reduces errors, cause more smoothness of the work surface, accuracy and high quality of the output and increase cutting speed.
- In this device, a one-piece cast iron chassis is used, which makes the device highly durable in continuous operation and makes the system unnecessary from multiple and consecutive calibrations.
- Using an internal computer and a 13.3-inch screen for the convenience of using the device
- Using a water-cooled spindle that eliminates the need for a large air compressor to cool the spindle
- Automatic lubrication system that periodically lubricates the moving parts of the device
|Specifications / Models||Digimill500-W|
|Number of Axes||5|
|Control Motors||Servo motor|
|Electro Spindle Power and Speed||1.5 KW/60000RPM|
|Controller||Internal Industrial |
|Interface||13.3 inch Touch |
|Number Of Tool change||8|
|Ball screw/Gearbox||Hiwin /Liming|
|Material||PMMA-Glass-Titanium-Pre-milled abutment-Emax IPS|
|Average Milling time for Pre-milled Abutment , Lisi, Titanium||14min|
|Power consumption||100~230 VAC max |
